[[뮤즈텍] Muztek CRL 5-WAY & 3-WAY [3단/5단 셀렉터 스위치]]

[뮤즈텍] Muztek CRL 5-WAY & 3-WAY [3단/5단 셀렉터 스위치]

상품가 25,000원

적립금 1%

구매하기

옵션

총 상품 금액 0 원

장바구니 구매하기

상품리뷰

상세정보 새창 열기

상세 정보를 확대해 보실 수 있습니다.

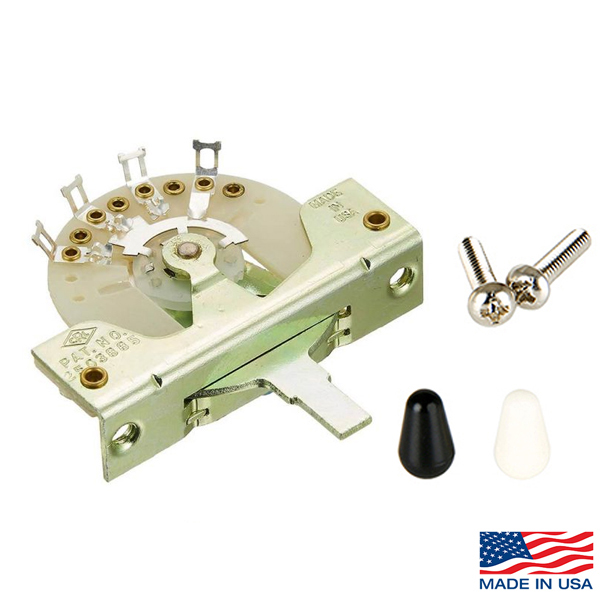

펜더 커스텀샵 제품에만 사용되고 있는
미국 Eletroswitch사의 CRL 5단 스위치 입니다.

*SPECIFICATIONS*

<ELECTRICAL>

Current and Voltage Rating: Make and break resistive load

1.5 amps @ 28 VDC; 0.5 amp @ 115 VAC.

Current Carrying Capacity: 9 amps.

Dielectric Strength: 1,000 VAC between current carrying parts and ground.

Contact Resistance: Average initial 3.5 milliohms.

Insulation Resistance: In excess of 750,000 megohms.

<MECHANICAL>

Materials and Finishes: All parts utilize non-corrosive materials as standard.

Clips and Rotors: Brass with silver plate as standard.

Insulation: Glass epoxy.

Index: Cam and roller with coil spring.

Index Life: 25,000 cycles minimum.

Index Torque: Switches have lowest practical torque consistent

with crisp detenting and smooth, reliable operation.

Index Angles: Positive 30°, 15° and spring return.

Index Stops: Fixed stops standard.

Stop Strength: 25 in. lbs. minimum.

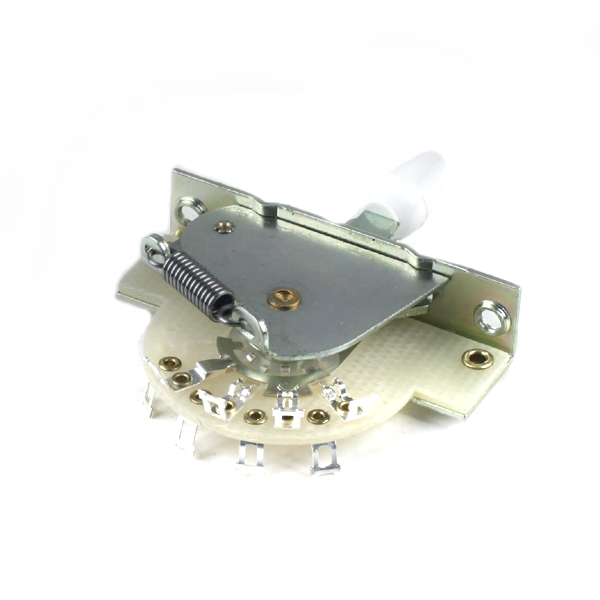

CRL 5-WAY
5 Way Switch
